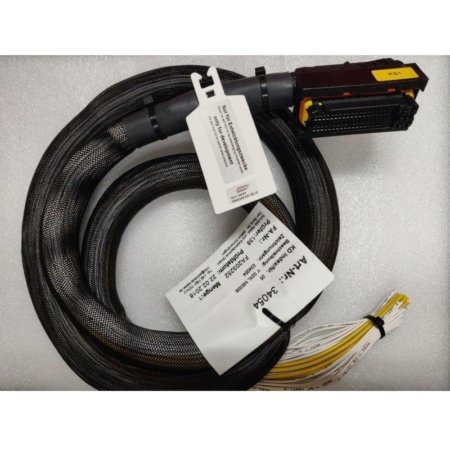

ESX.3cm wiring harness
Connector assembly details:
(Note this can be used for other controllers which uses similar connector)
|
1 |
1473244-1 |
81pos plug housing assembly, female, MQS/JPT, CODE-A (black) |
|
1 |
1473247-1 |
81pos lever assembly, TYPE-A (straight) ® outwards |
|
1 |
1473250-1 |
81pos lever assembly, TYPE-B (angulate) ® inwards |
|
1 |
368382-1 |
Retainer for 81pos MQS Plug |
|
6 |
964273-2 |
Female JPT contact (1.0 mm² .. 2.5 mm²) |
|
80 |
968221-1 |
Female MQS clean body contact (0.5 mm² .. 0.75 mm², Sn) |
|
6 |
963292-1 |
Sealing for JPT (ø = 2.7 mm .. 3.0 mm) |
|
3 |
828922-1 |
Cavity plug for JPT (ø = 6.2 mm) |
|
40 |
936054-1 |
Cavity plug for MQS |
