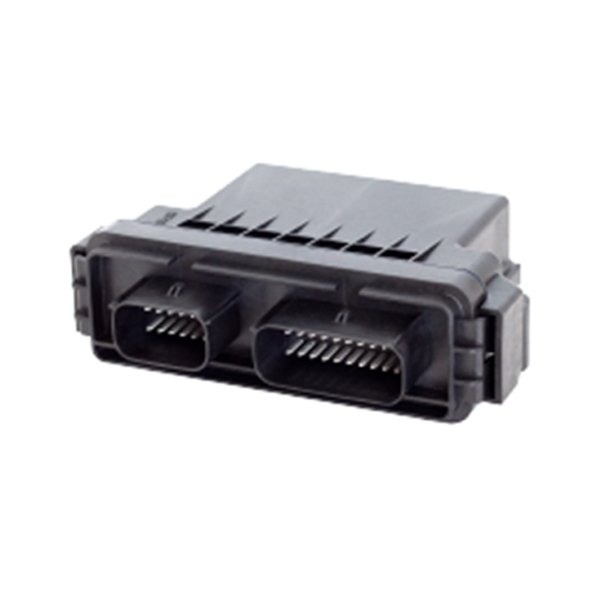

b-CANCube Mini-Sealed (12 IOs)

$859.00

Pricing includes 10% GST and Local Economical Freight

Part No: B20300-CMS-001-0001

Brand : b-Plus GmbH

  • CAN bus I/O controller
  • 3 CAN bus interfaces
  • 2 serial interfaces RS232
  • 1 RS485 interface
  • 6 parametrizable inputs
  • 6 parametrizable outputs
  • Free programmable in C
  • Operating temperature -40 … +80°C
  • IP67/IP69k
Categories: , , Brand:

Description

The universal usable compact controller is equipped with a performant 32- Bit Microcontroller and offers a flexible I/O configuration. b-CANCubeMini Sealed was designed especially for the outdoor use in mobile machines and vehicles.

  • Bus communication: Three CAN-Interfaces e.g. for the connection to various motor control units or CAN control interfaces by b-plus. Besides CAN there are two serial RS232-Interfaces and one RS485 available.
  • Multifunctional inputs and outputs: Twelve variable parametrizable inputs and outputs offer the flexibility to be adapted to the particular application. The clamp 15 pin enables a time delayed shutdown of the controller directly controlled from the application.
  • Robust mechanical housing: A proven housing enables an IP grade up to IP69k.

Free programmable and parametrizable: The controller is programmable in C. With an userfriendly API it is easy to start programming.
