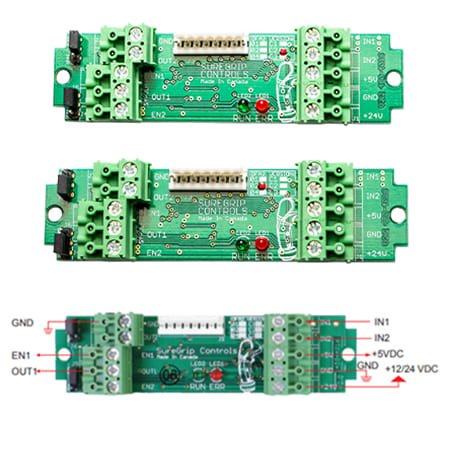

Caterpillar ECM Compatible Driver Board

Pricing includes 10% GST and Local Economical Freight

Configured for Joystick Type Control Inputs (JSM/JSL Series Joysticks, Proportional Slider Modules)
PWM Outputs Specifically Designed to Interface to Caterpillar ECM’s

Lead time: 4-5 weeks from order placement

Description

▪ Configured for Joystick Type Control Inputs
(JSM/JSL Series Joysticks, Proportional Slider Modules)

▪ PWM Outputs Specifically Designed to Interface to
Caterpillar ECM’s

Features:

▪ Wide Supply Range +6V to +30V
▪ Power Supply and Control Input Protection
▪ Variable PWM Control Signal Outputs
▪ High Current Valve Enable Outputs

Datasheet

Accessories

Choose Variant	DFA2-C1 (Single control output with dual inputs), DFA2-C2 (Dual control outputs with dual inputs)
