Description
- Robust industrial use
Designed for industrial environments, meeting high demands for robustness, temperature ranges, and safety.
- Flexibility in CAN FD network design

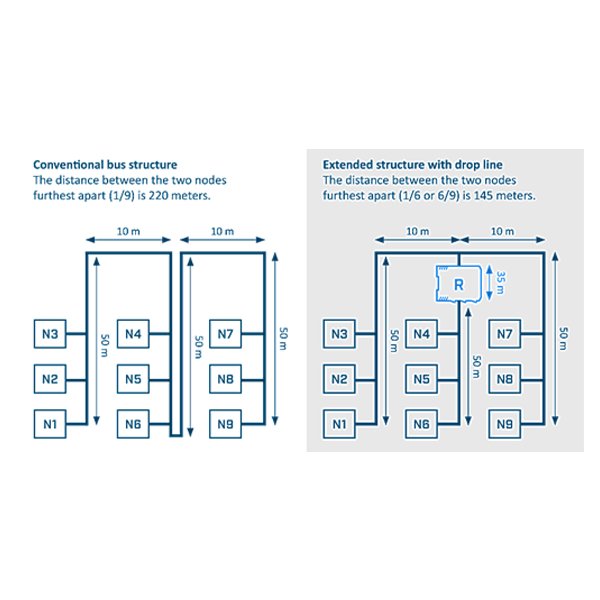

Helps to optimize CAN/CAN FD network structures by enabling extended layouts (stub lines, star and tree topologies).
- Fast and transparent operation
Minimal impact on real-time behavior, equivalent to a short line length (ca. 35 m/175 ns delay). Enabling transparent transmission, compatible with all higher layer protocols.
- Cost savings due to simple wiring
Optimized topologies enable simpler wiring, resulting in less cables and cost savings at installation and maintenance.
- Enhanced network reliability
Higher system reliability by electrically isolating CAN/CAN FD segments and power up to 1 kV. This enhances the protection of the device against damage to electronics caused by voltage peaks.
- Network monitoring and fault recovery
In case of disturbances, the repeater automatically disconnects the affected segment and restores it after the fault is resolved.
