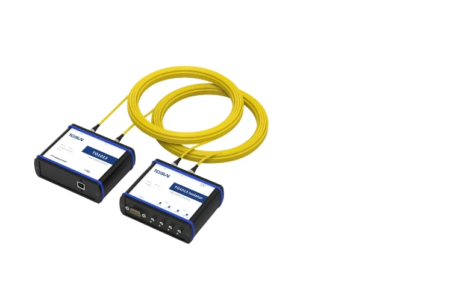

TOSUN TO1013 – 2-Channel CAN/CAN FD to Fibre-Optic Interface

Pricing excludes 10% GST

Part No: TO1013

Brand : Tosun Technology

  • 2 × CAN FD channels
  • CAN 2.0A/B and CAN FD support
  • CAN FD up to 8 Mbps
  • Fibre-optic communication
  • High EMC/EMI immunity
  • 1 μs hardware timestamp
  • Software-selectable 60/120 Ω termination
  • Configurable CAN capacitance to ground
  • Up to 20,000 frames/second transmit and receive
  • USB 2.0 interface
  • UDS diagnostics and ECU testing support
  • Windows and Linux support
  • TSMaster compatible
Categories: , , Brand:

Description

The TOSUN TO1013 provides two CAN/CAN FD channels with fibre-optic communication for electrically isolated, low-interference CAN networks and demanding EMC environments.

Model TO1013
CAN Channels 2 × CAN FD
PC Interface USB 2.0
CAN Interface DB9
CAN CAN 2.0A/B, 125 Kbps–1 Mbps
CAN FD ISO and non-ISO CAN FD, 125 Kbps–8 Mbps
Timestamp 1 μs hardware timestamp
Termination 60/120 Ω, configurable by toggle switch
CAN Capacitance to Ground 22 pF / 470 pF, configurable
Transmit Rate Up to 20,000 frames/second
Receive Rate Up to 20,000 frames/second
Communication Fibre optic
Operating System Windows and Linux
