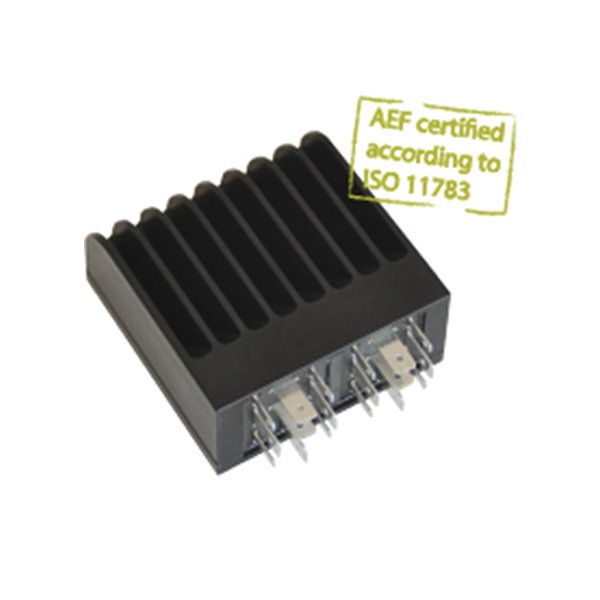

b-CANCube Mini (Ag)

Price range: $759.00 through $852.00

Pricing includes 10% GST and Local Economical Freight

Part No: Please select variant

Brand : b-Plus GmbH

  • CAN bus I/O controller
  • 2 CAN-Bus interfaces
  • 5 parametrizable inputs
  • 6 parametrizable outputs
  • CANopen®- / J1939 slave or free programmable in C
  • Operating temperature -40 … +80°C,
  • IP54
SKU: N/A Categories: , Brand:

Description

The universal usable compact controller is equipped with a performant 32-Bit Microcontroller and offers a flexible I/O configuration. b-CANCubeMini was designed especially for the use in mobile machines and vehicles.

  • Bus communication: Two CAN-Interfaces e.g. for the connection to various motor control units or CAN control interfaces by b-plus.
  • Multifunctional inputs and outputs: Eleven variable parametrizable inputs and outputs offer the flexibility to be adapted to the particular application
  • Robust mechanical housing: Proven housing technology (Twin automotive relay) in the mobile area and solid aluminum housing.

Free programmable or parametrizable: Programming in C, alternative parametrizable application software for the connectivity to J1939 and CANopen® networks.

Additional information

Choose Variant

B20100-CCM-001-9001 – b CANCubeMini C-programmable incl. ISOBUS VT, AUX license, B20100-CCM-001-9901 – b-CANCubeMini C-programmable incl. ISOBUS VT,AUX + TC license
