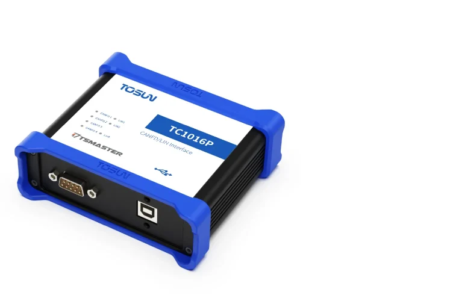

TOSUN TC1016P – 4 CAN FD + 2 LIN USB Interface

Pricing excludes 10% GST

Part No: TC1016P

Brand : Tosun Technology

  • 4 × CAN FD channels
  • 2 × LIN channels
  • CAN FD speeds up to 8 Mbps
  • LIN 1.3 and LIN 2.0 support
  • High-speed USB 2.0 interface
  • 1 μs hardware message timestamp
  • Software-configurable 120 Ω CAN termination
  • CAN channel isolation
  • UDS diagnostics and ECU flashing
  • CCP/XCP calibration support
  • LIN-based UDS diagnostics
  • BLF and ASC logging and playback
  • Windows and Linux support
  • TSMaster compatible
Categories: , , Brand:

Description

The TOSUN TC1016P combines four CAN FD channels and two LIN channels in one USB interface, providing a flexible multi-bus platform for network analysis, simulation, diagnostics and automated ECU testing.

Model TC1016P
CAN Channels 4 × CAN FD
LIN Channels 2 × LIN
PC Interface High-speed USB 2.0
CAN/LIN Interface DB9
CAN CAN 2.0A/B, 125 Kbps–1 Mbps
CAN FD ISO and non-ISO CAN FD, up to 8 Mbps
LIN LIN 1.3 / LIN 2.0, 0–20 Kbps
Timestamp 1 μs hardware timestamp
Termination Built-in 120 Ω, software configurable
Diagnostics UDS diagnostics and ECU flashing
Calibration CCP/XCP
Operating System Windows and Linux
