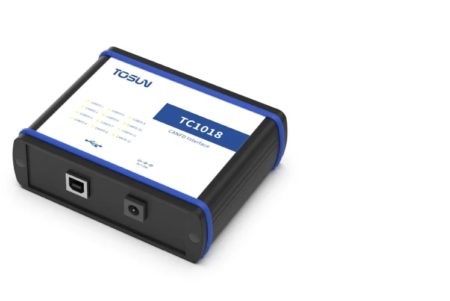

TOSUN TC1018 – 12-Channel CAN FD to USB Interface

Pricing excludes 10% GST

Part No: TC1018

Brand : Tosun Technology

  • 12 × CAN FD channels
  • CAN 2.0A/B and CAN FD support
  • CAN FD speeds up to 8 Mbps
  • USB 2.0 interface
  • 1 μs hardware message timestamp
  • Up to 17,000 frames/second per channel
  • DC 2500 V CAN channel isolation
  • Software-configurable 120 Ω termination
  • DB37 interface with DB9 breakout cable
  • DBC and ARXML support
  • UDS diagnostics and ECU flashing
  • CCP/XCP calibration
  • Windows and Linux support
  • TSMaster compatible
Categories: , , Brand:

Description

The TOSUN TC1018 provides 12 independent CAN FD channels through USB 2.0 for complex multi-network data acquisition, CAN FD simulation, ECU testing and automated test systems.

Model TC1018
CAN Channels 12 × CAN FD
PC Interface USB 2.0
CAN Interface DB37 with DB9 breakout cable
CAN CAN 2.0A/B, 125 Kbps–1 Mbps
CAN FD ISO and non-ISO CAN FD, 125 Kbps–8 Mbps
Channel Buffer Up to 700 CAN FD frames per channel at 64 bytes
Timestamp 1 μs hardware timestamp
Termination Built-in 120 Ω, software configurable
Transmit Rate Up to 17,000 frames/second
Receive Rate Up to 17,000 frames/second
Isolation DC 2500 V CAN channel isolation
Power Supply DC 7–18 V
Operating Temperature -40°C to 85°C
Housing Aluminium
Dimensions 100 × 80 × 30 mm
