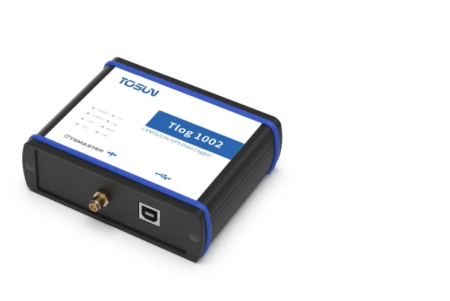

TOSUN Tlog1002 – 2-Channel CAN FD / 2-Channel LIN Data Logger

Pricing excludes 10% GST

Part No: Tlog1002

Brand : Tosun Technology

  • 2 × CAN/CAN FD channels
  • 2 × LIN channels with Master/Slave support
  • CAN FD data rate up to 5 Mbps
  • 64 GB onboard storage for standalone data logging
  • 1 μs high-precision hardware timestamp
  • Integrated GPS for vehicle and road-test data acquisition
  • 2 × Digital Inputs, 2 × Digital Outputs and 1 × Analog Input
  • Up to 20,000 CAN frames/s transmission and reception per channel
  • Supports BLF data recording, playback and analysis
  • Supports UDS diagnostics and ECU flashing
  • Supports CCP/XCP calibration
  • DBC and ARXML database support through TSMaster
  • Ethernet interface for PC communication
  • Windows and Linux support
  • Compact metal enclosure for professional testing environments
Categories: , , Brand:

Description

The TOSUN Tlog1002 is a compact, high-performance data logger featuring 2 CAN/CAN FD channels and 2 LIN channels for vehicle network analysis, data acquisition and ECU testing. With 64 GB onboard storage, GPS, 1 μs hardware timestamping and integrated I/O, the Tlog1002 is ideal for standalone field data logging and professional automotive testing.

Supporting CAN FD data rates up to 5 Mbps, LIN 1.3/2.0/2.1 and J2602, the Tlog1002 works with TOSUN TSMaster software for network monitoring, recording, replay, diagnostics, ECU flashing and CCP/XCP calibration.

CAN Channels 2 × CAN / CAN FD
CAN FD Speed Up to 5 Mbps
LIN Channels 2 × LIN
LIN Speed 4.8–20 kbps
Storage 64 GB
Timestamp 1 μs
GPS Integrated
I/O 2 × DI, 2 × DO, 1 × AI
PC Interface RJ45 Ethernet
Software TSMaster
Operating Temperature -40°C to +80°C
Enclosure Metal
